S9B-50X65.1X6.3-AD1

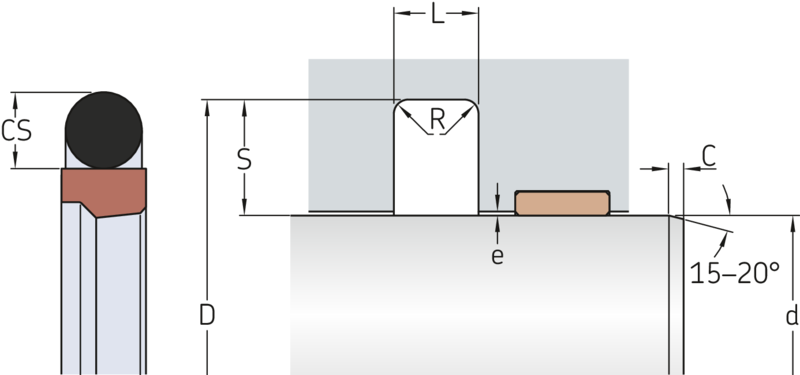

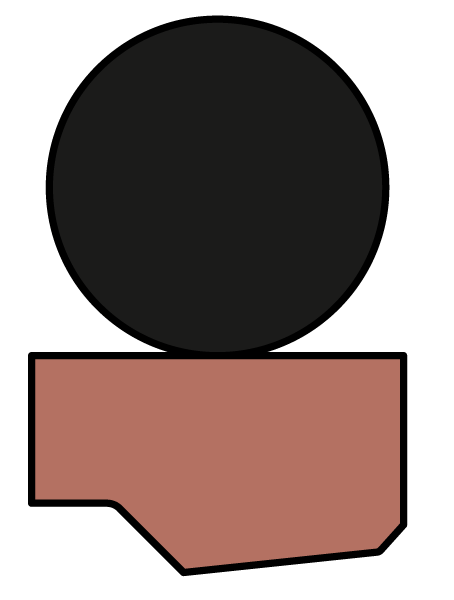

Hydraulic buffer seal, with O-ring energizer and PTFE or X Ecopur slide ring

These hydraulic buffer seals consist of a nitrile rubber O-ring energizer and a PTFE slide ring as standard. On request, also available with X-ECOPUR thermoplastic polyurethane slide ring which enables easier installation, improves wear resistance and accommodates higher pressures.

• Some sizes are suitable for seal housings according to ISO 7425-2 or ISO 3320
• PTFE slide rings accommodate pressures up to 400 bar (5 800 psi)
• X-ECOPUR slide rings accommodate pressures up to 600 bar (8 700 psi)
• Suitable for medium to heavy duty applications
• Available in metric and inch sizes
